In modern manufacturing speed and precision have a direct effect on product quality and profitability. Automatic liquid filling machine has become a key solution for industries that need to have consistent filling, to minimize wastage and simplify the operations. From food and beverages to pharmaceuticals and chemicals, automatic filling systems ensures that manufacturing companies can deliver an adequate amount of their product to the consumers on account of the growing need for the same without having to compromise on accuracy or hygiene.
Innovative Packaging Machines, a manufacturing and supply company based in Pune, set up in 2010, is in its occupation in designing sturdy automatic liquid filling machines that can facilitate efficient, scalable and reliable packaging process for the Indian industries.
An automatic liquid filling machine is a sophisticated packaging machine that fills liquids into containers with the least amount of human intervention possible. Once bottles/containers have entered the system, their positioning, filling and transfer to the next stage in the packaging process is all completed automatically by the machine.
The liquid filling machines that are automatic in nature are designed for continuous operation and are ideal for use in medium to large-scale production environments where consistency and output speed are important.
Automatic liquid filling machines work on a controlled filling mechanism most commonly being a volumetric piston technology to ensure precision fill volumes. The system is usually controlled through a control panel based on a PLC, so that the operator can make adjustments in fill quantity, speed and timing.
The process includes:
Automatic container movement through conveyors
Accurate liquid dispensing through nozzles
Controlled flow to prevent spillage and foaming
Smooth transfer to capping or labeling systems
This automated workflow significantly reduces human error and improves production efficiency.
Volumetric piston filling technology.
PLC controlled system.
Heat resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications.
Filling Range 100 ml to 1 Ltr .without any change parts.
Capable of multifilling up to 5 Ltrs.
Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
Diving nozzle mechanism avoids foaming & spillage.
Positive shut-off Nozzle helps in keeping the filling area clean.
Speed : 80 to 100 Bottles per Minute
Available as standalone Machine. And also as complete Auto-line with 2, 4, 6, & 8 Filling Heads.
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible Oils & Lubricating Oils etc.
Volumetric piston filling technology.

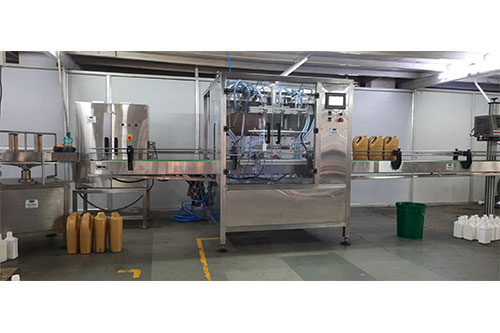

Volumetric piston filling technology (Servo Controlled)
Easy Volume adjustment on HMI only
Capable of Filling Hot Products Upto 100 degrees
Much butter Accuracy & Speed as compaired to Pneumatic filling Lines.
Speed Upto 75 to 80 Bottles Per Minute. (200 ml)
Filling Range 100 ml to 1 Ltr .without any change parts.
Capable of multifilling up to 5 Ltrs.
Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
Diving nozzle mechanism avoids foaming & spillage.
Positive shut-off Nozzle helps in keeping the filling area clean.
Available as standalone Machine. And also as complete Auto-line with 2,4 6 & 8 Filling Heads
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible & Lubricating Oils etc.
Volumetric piston filling technology.
PLC controlled system.
Heat resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications.
Filling Range 100 ml to 1 Ltr .without any change parts.
Capable of multifilling up to 5 Ltrs.
Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
Diving nozzle mechanism avoids foaming & spillage.
Positive shut-off Nozzle helps in keeping the filling area clean.
Speed: 40 to 50 Bottles per Minute.
Available as standalone Machine. And also as complete Auto-line with 2, 4, 6, & 8 Filling Heads.
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible Oils & Lubricating Oils etc.
Volumetric piston filling technology.
PLC controlled system.
Servo Controlled System for better accuracy & speed.
Filling volume adjusted very easily on HMI itselt. (No manual adjustment)
Filling Range 100 ml to 1 Ltr .without any change parts.
Capable of multifilling up to 5 Ltrs.
Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
Diving nozzle mechanism avoids foaming & spillage.
Positive shut-off Nozzle helps in keeping the filling area clean.
Speed : 40 to 60 Bottles per Minute
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible Oils & Lubricating Oils etc.
Volumetric piston filling technology.
controlled system.
resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications.
Range 100 ml to 1 Ltr .without any change parts.
of multifilling up to 5 Ltrs.
machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
nozzle mechanism avoids foaming & spillage.
shut-off Nozzle helps in keeping the filling area clean.
20 to 24 Bottles per Minute
as standalone Machine. And also as complete Auto-line with 2, 4, 6, & 8 Filling Heads.
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible Oils & Lubricating Oils etc.
Volumetric piston filling technology.
PLC controlled system.
Heat resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications.
Filling Range 100 ml to 1 Ltr .without any change parts.
Capable of multifilling up to 5 Ltrs.
Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts.
Diving nozzle mechanism avoids foaming & spillage.
Positive shut-off Nozzle helps in keeping the filling area clean.
Speed: 10 to 12 Bottles per Minute.
Available as standalone Machine. And also as complete Auto-line with 2,4, 6, & 8 Filling Heads
This machine can be used to fill Water, Solvents, Alcohol, Liquid chemicals, Pesticide Liquids, Biotech Liquids, Coolants, Pharmaceutical Formulations, Juices, Coconut Oils, Edible Oils & Lubricating Oils etc.
