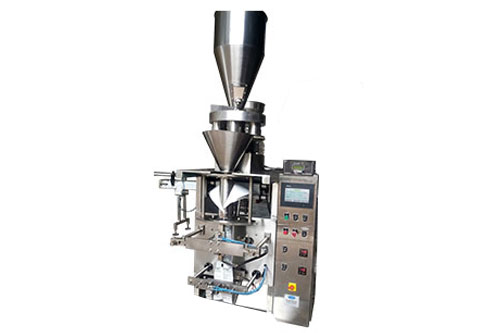

Cup filler pouch packing machines are designed for accurate and efficient packaging of free-flowing granules and products with consistent bulk density. These vertical form fill seal (VFFS) machines use volumetric cup dosing systems to deliver uniform filling in central or multi-side sealed sachets. Equipped with PLC control, HMI interface and variable frequency drive systems and print registration technology, models like IPM-50, IPM-100, IPM-500 and IPM-1000 guarantee reliable and consistent pouch packaging performance. Cup filler systems are ideal for filling of products such as rice pulses, sugar, tea, coffee beans, spices, snacks, granules and detergents. With adjustable filling ranges and mechanical or pneumatic solutions, these machines cater to food, FMCG, agricultural, and industrial industries with highly cost-effective and high-speed packaging solutions.
A vertical Form Fill and seal machine for producing central sealed sachets handling all types of free flowing / non-free flowing Powders / granules. Model IPM 500 & IPM 1000 handle single reel film stock, having 76 mm core diameter. Max. Reel width is 330 mm for IPM-500 and 530 mm for IPM-1000. Draw down of the film is through draw down belts, driven by Variable Frequency Drive. The length of the bag is controlled by Print registration system, which is PLC controlled. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
Special Features:
Draw down belts Driven by Variable Frequency Drive.
PLC control with HMI
Pneumatic actuated draw down belts, driven by Variable Frequency drive
Detachable Perspex and stainless steel guards. Easy for fault finding.
Rice, Pulses, Tea, Coffee beans, Candies / Toffees, Tablets, Cashews, Potato / Banana wafers, Snack foods, Fresh & frozen foods, Dried fruits, Pasta pieces, Detergents, Hardware items, Spices, Soup mixes, Sugar, etc. Filling Range: For MB - 25 : 10 grams to 500 grams.
PLC control with HMI
Paper pull through puller rollers
Detachable perspex and stainless steel guardseasy for fault finding
Inbuilt self diagnostic features
Hourly production data
Overload protection
Free-flow products of consistent density such as popcorn, granulated sugar, beans, nuts, seeds, coffee, rice, pulses & whole spices etc.
PLC control with HMI
Paper pull through puller rollers
Detachable perspex and stainless steel guardseasy for fault finding
Inbuilt self diagnostic features
Hourly production data
Overload protection
Free-flow products of consistent density such as popcorn, granulated sugar, beans, nuts, seeds, coffee, rice, pulses & whole spices etc.
Heavy-duty rotating stainless steel platform
A vertical form, fill and seal machine for producing 3/4 side sealed sachets handling all types of viscous products.
The machine speed is infinitely controlled from 0-50 cycles/ minute.
Single reel film laminate stock reel feed. Max. reel dia. 400 mm on 76 mm core. Product dosing by piston pump with reciprocating valve. All parts in contact with product are made of high quality stainless steel.
Sealing dies gear operated, with complete pressure and temperature control on sachet seal area.
Filling Range : 0.5 gm up to 30 gms depending upon bulk density of the product. (Higher capacities on request.)
Powders (Free and Non-free flowing), Granules, Pulses, Beans, Spices, Soup mixs, Detergents, Pharmaceuticals, and agricultural, Powders, Tea, Coffee, Sugar, Rice, etc.
A vertical form, fill and seal machine for producing 3/4 side sealed sachets handling all types of viscous products.
The machine speed is infinitely controlled from 0-50 cycles/ minute.
The machine speed is infinitely controlled from 0-50 cycles/ minute.
Single reel film laminate stock reel feed. Max. reel dia. 400 mm on 76 mm core. Product dosing by piston pump with reciprocating valve. All parts in contact with product are made of high quality stainless steel.
Sealing dies gear operated, with complete pressure and temperature control on sachet seal area.
Filling Range : 0.5 gm up to 30 gms depending upon bulk density of the product. (Higher capacities on request.)
Powders (Free and Non-free flowing), Granules, Pulses, Beans, Spices, Soup mixs, Detergents, Pharmaceuticals, and agricultural, Powders, Tea, Coffee, Sugar, Rice, etc.
